LB4/60A Smart Bridge for Cable Fault Location

Introduction

The LB4-60A is a highly accurate high-voltage bridge designed to pre-locate cable faults. We add burning function inside with a high voltage up to 60kv which will be useful to high-resitive faults.

Why do you need an HV bridge when you have ARM based prelocation?

Because it locates faults where the otherwise perfect reflection based technologies have limits, for example on long cables as subsea cables.

• TDR reflection based technologies have very large reflections on crossbonded cables, which prevent longer ranges
• Reflection measurements are based on an impedance measurement, while the LB4-60A measures resistance. Resistance and impedance values can be completely different while having the same cause.
• The main insulation wave reflection characteristics of low-voltage cables are bad, making it difficult to obtain effective TDR reflection

Features

Appearance:exquisite, portable,integrated
1.Exquisite: US PALICAN trolley case.

2.Portable:integrated trolley case.

3.Integrated: set intelligent bridge and constant current burn through in one.

Strong power to burn through

1.Bum-through voltage output up to 60kv.

2.Bum-through current output up to 400mA.

3.Quicky burn through superhigh resistance fault.

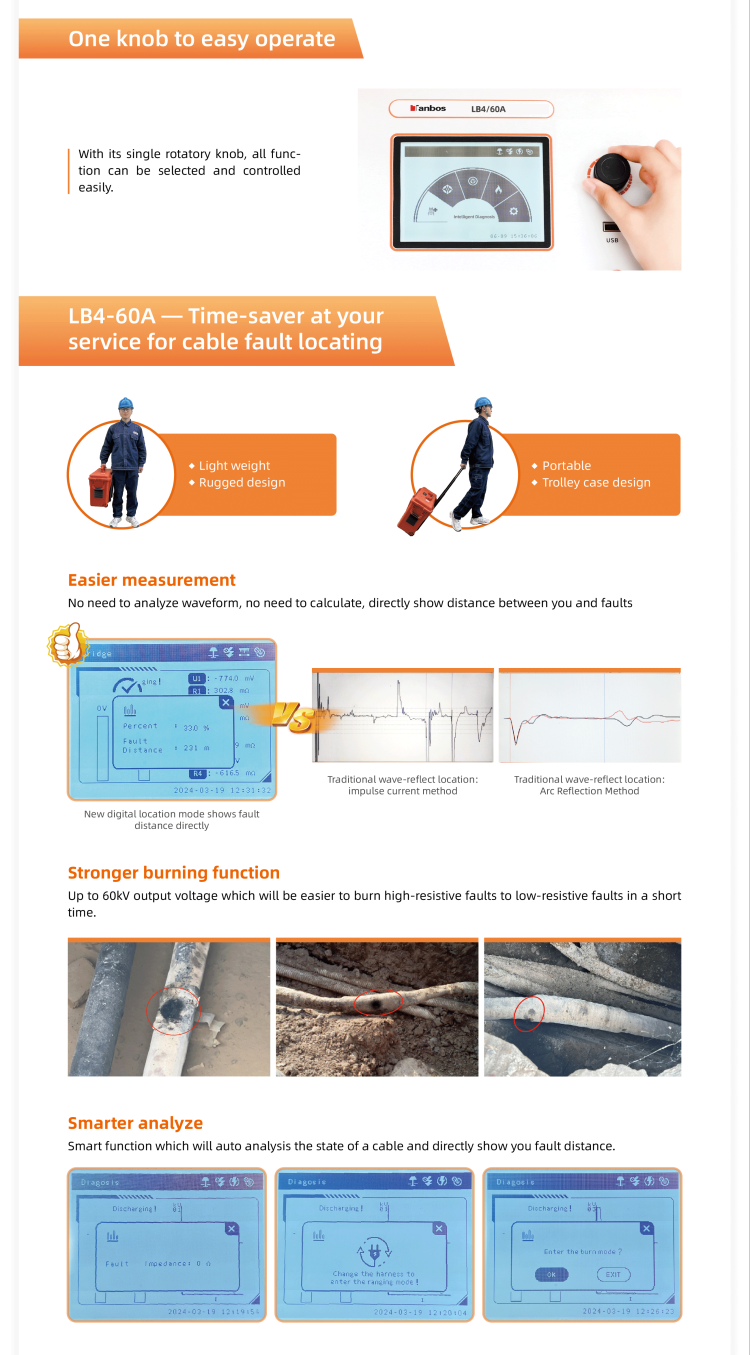

New digital location mode

1.Showing the fault distance by number.

2.Solving problems with waveform difficult to analysis.

3.Easy to locate cable's intermediate joint fault.

4.One button operation makes things easier.

Intelligent location: compared withtraditionalimpulse-reflect method

1.High accuracy:intelligent bridge method no dead zone.

2.Easy analysis: no need to see the waveform, showing thefault distance by number.

3.Wide range: very applicable to locate big section and longdistance fault.

4.Diversification:intelligent HV bridge method, voltage dropmethod,sectional area method.

5.Specificity:very effective to water-in and stable highresistance fault.

Parameters

TECHNICAL DATA
Test mode	Intelligent diagnosis mode, bridge mode, cross section mode,burn through mode
Intelligent diagnostic mode
Function	Automatically determine the fault type, recommend the test method, guide into the burn through mode or ranging mode
Output voltage	0~60kV DC, negative polarity
Burn through mode
Output voltage	0~60kV DC, negative polarity
Short circuit current	400mA
Burn through power	20~100%, adjustable
Burn through time	0~90min, adjustable
Bridge mode
Output voltage	0-4kV DC, bipolarity
Output current	0-750mA
Cross section mode
Cable cross-sectional area	1-9999mm2, adjustable
Boost operation	CNC operation, automatic boost
Test range	0.001-50km
U-t, I-t change relationship	Two-dimensional coordinate map display
Voltage and current display	Digital display, no dashboard
Positioning accuracy	± (0.1%·L+1) m (L is cable full length)
Grounding detection	Contact resistance between the test ground and the protection ground should be less than 10Ω
Safety	Temperature detection, automatic protection loop, double ground system
Screen	320*240 LCD, visible in sunlight
Data storage	Record historical data in ranging mode, max 100 pieces
Max output power	400W
Memory	32G, USB port
Operating temperature	-25°c ~50°C
Storage temperature	-30°C~60°C
Humidity	< 95% no condensation
Power supply	AC 100V~240V, 50/60Hz
IP	IP43
Weight	22.5kg (without accessories)
Size(Lx W x H)	300x460x500mm

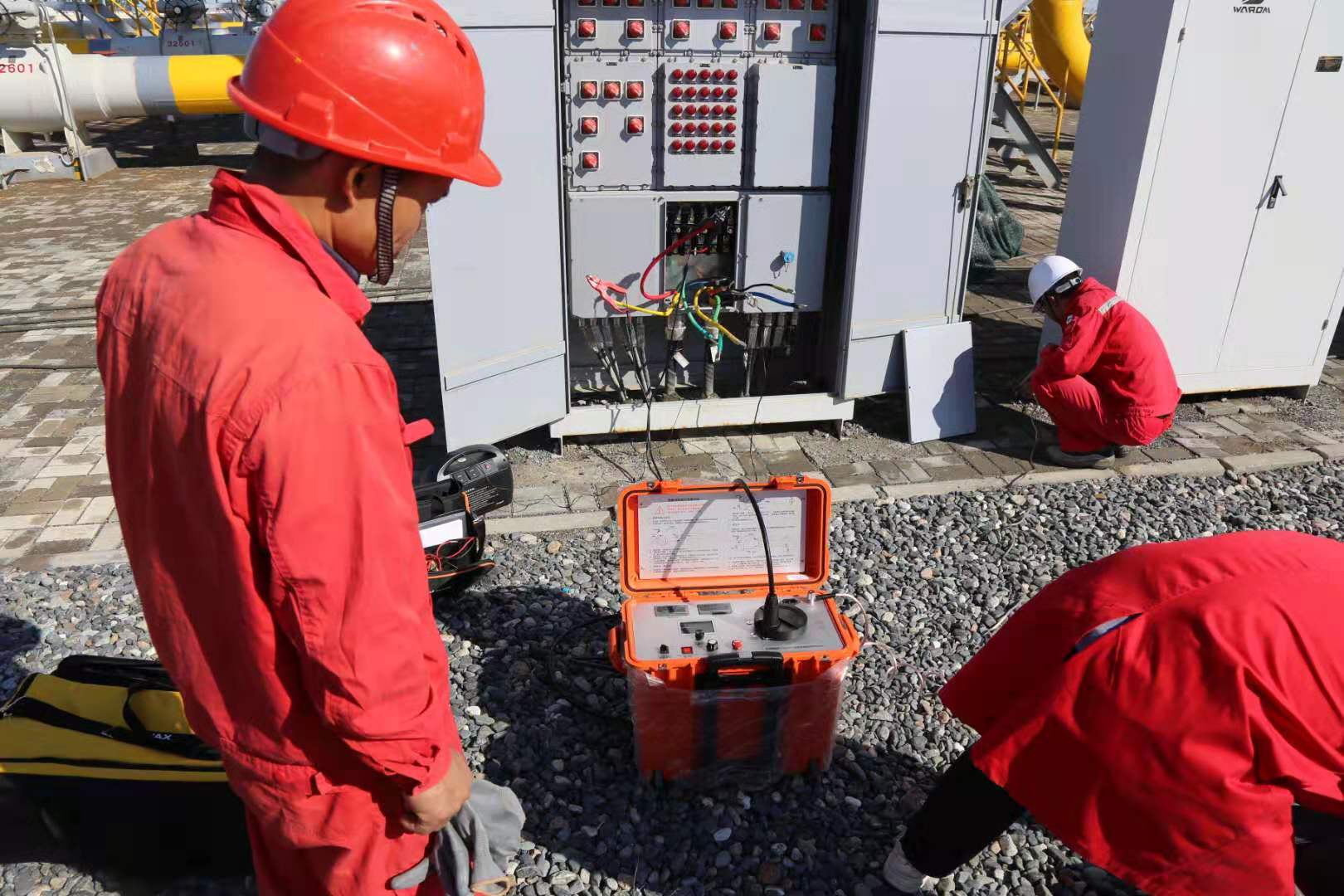

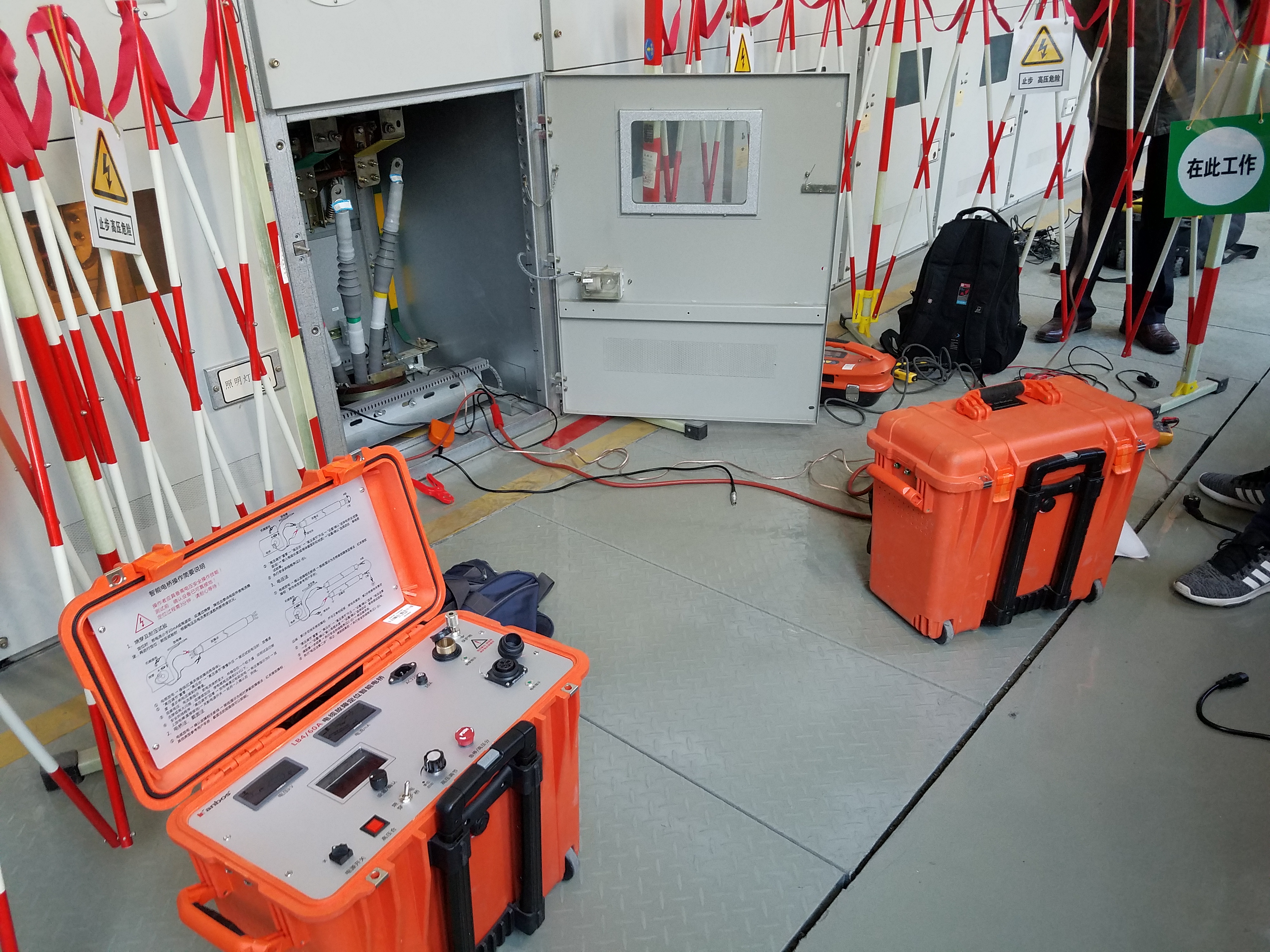

Applications

1.Meet faults while TDR reflection based technologies can not work good

2.Meet high-resistive faults need to burn through which will be easier to locate

3.Want to see fault distance directly with no analysis waveform

4.Pre-locate sheath fault of a cable
