VLF-90 Portable Hipot Test System

Introduction

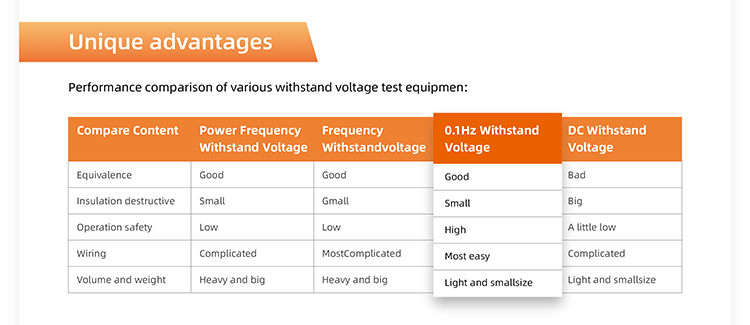

Unique advantages

Performance comparison of various withstand voltage test equipmen:

Easy to operate: simple wiring, fool operation

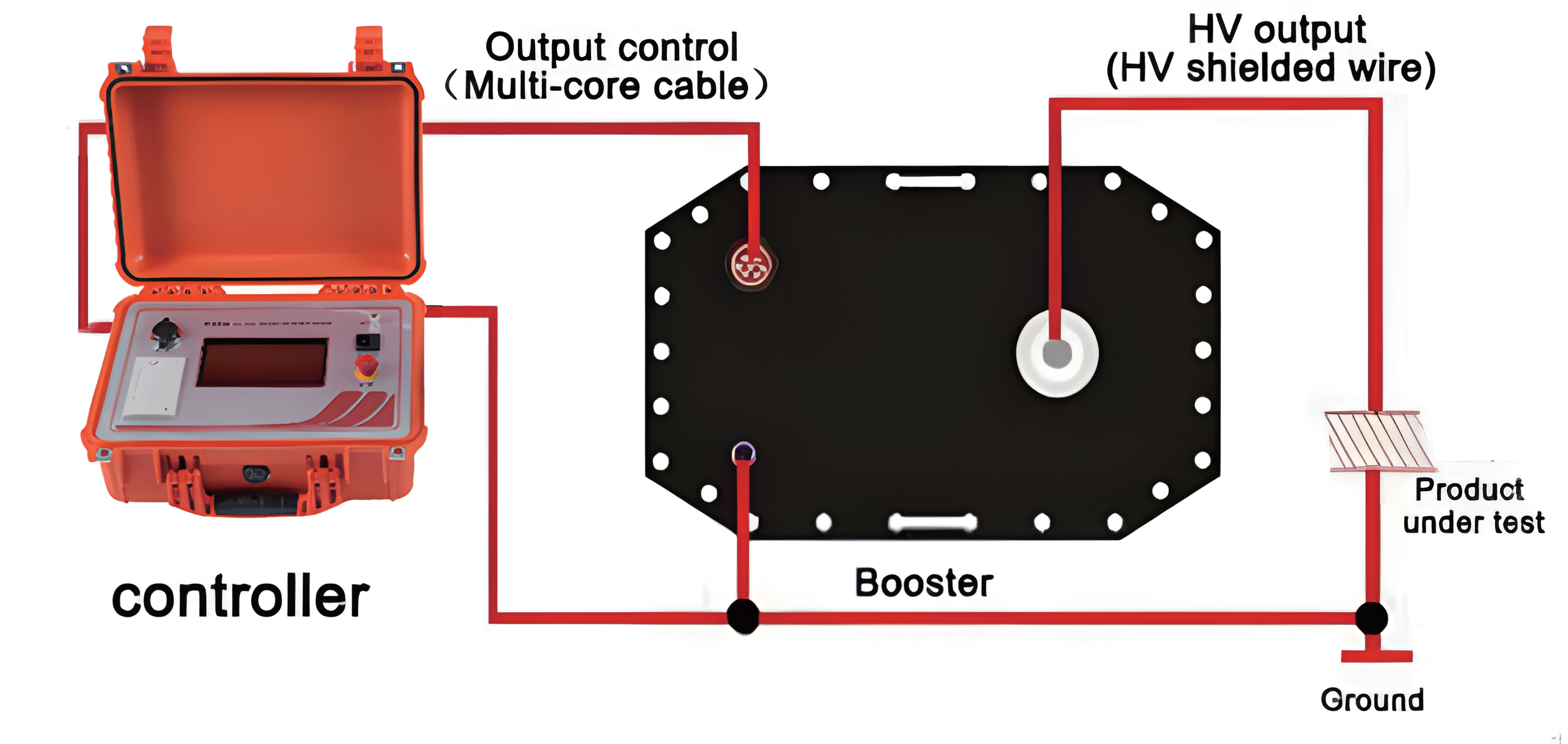

The instrument consists of two parts: controller and booster.Wiring instructions: connect the control output special line, high voltage output special line and grounding wire equipped with the product according to the method shown in figure.

The test process is fully automated

Self-inspection →boosting →constant amplitude output →Shutdown

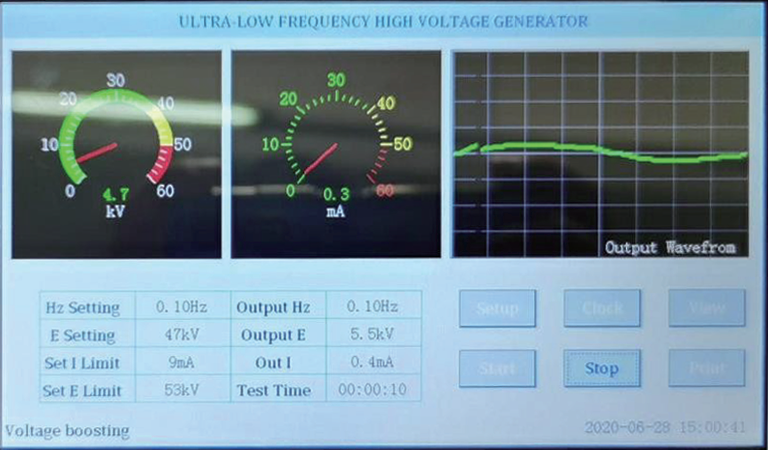

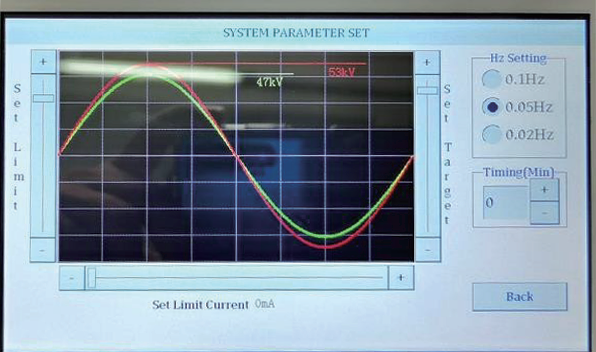

             parameter setting interface                          the controller indicates that the voltage is boosting

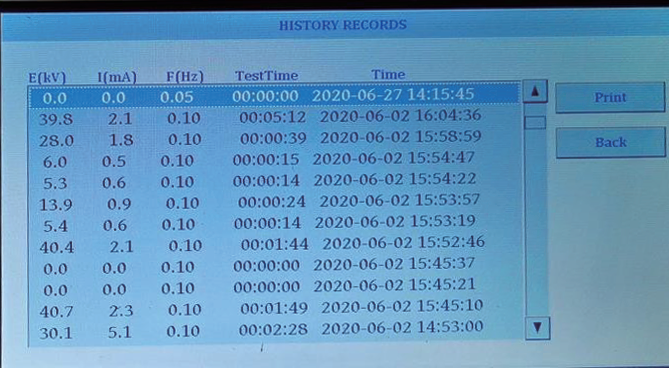

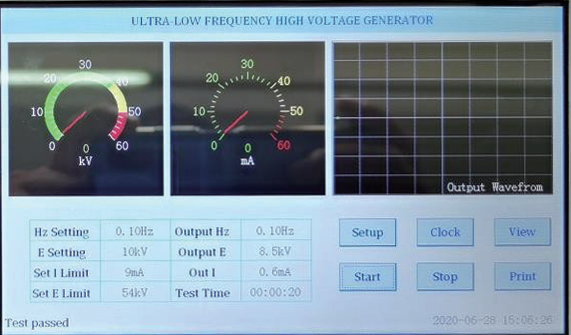

             Controller prompt test passed                                Viewing and printing test data

Parameters

TECHNICAL DATA
Output voltage	90 kVpeak
Frequency	0.1Hz、0.05Hz、0.02Hz
Load	0.1Hz , 1.1µF max
	0.05Hz , 2.2µF max
	0.02Hz,5.5µF max
Applicable cable voltage range	6-35kV power cables
Voltage waveform distortion	≤5％
Operating temperature	-10℃～+40℃
Storage temperature	-30°C-60°C
Humidity	≤85％RH
Weight	controller-5.8 ㎏ & booster55 ㎏

Tanbos

 Presenting the VLF-90kV Portable Big LED Screen VLF Hipot Test Set Voltage Frequency Tester, a sturdy and product this might be versatile for high voltage assessment in an amount genuine of systems. Developed by the name brand celebrated, this assessment gear boasts performance quality dependable that guarantees result maximum.

 This technique comes insurance firms a large and display obvious is LED provides data evaluation easy-to-read. The screen shows information such as voltage, regularity, leakage present, and angle duration other individuals. The Tanbos screen this is LED backlit, that means it is noticeable even yet in low light conditions.

 The Tanbos VLF-90kV Portable Big LED Screen VLF Hipot Test Set Voltage Frequency Tester is crafted for portability, to be able to check always systems that could be areas electric different. The lightweight and design this is lightweight that this method can squeeze into a particular area small such as a toolbox or simply just trucks and car’s trunk. Moreover, the handle this will be base most ergonomic is wheeled that it's a task simple go around while maintaining safety during evaluation procedures.

 This Tanbos product normally engineered for durability, combined with casing this can be outside through the robust and item heat-resistant shall withstand environments harsh. The casing protects the sun and rain interior damage during transport or used in commercial settings.

 The Tanbos VLF-90kV Portable Big LED Screen VLF Hipot Test Set Voltage Frequency Tester is optimized for high voltage assessment, insurance coverage organizations a manufacturing voltage just as much as 90kV and a regularity of 0.1 Hz. A protection is roofed by the test set this is important that instantly stops the ensure it comes down right down to customer or simply just the apparatus that you discharge the item to avoid dilemmas whenever.

 This process typically a piece of cake to arranged and run, insurance policy companies a control simple enough that allows users to improve the voltage regularity and level. The panel comes with an emergency end switch and a test button that initializes the testing procedure
