HCI Cable Identifier For De-energised Cables

Introduction

Suitable for power outage cable identification. Accurate identification of one target cable from a bundle of cables is a technical problem often encountered by power cable engineers and cable workers. The purpose of cable identification is to avoid serious accidents caused by miscutting live cables. Cable identification requires professionals to start from both ends of the cable and ensure the accuracy of the double numbering of cable equipment. No matter how reliable the memory of field staff is, it cannot replace the recognition of professional instruments.

HCI is simple to operate, intelligent recognition, accuracy of 100%, can help field personnel accurately and quickly identify the target cable in complex environment accessories.

Features

1.Appearance: integrated American PELICAN case, simple wiring, light and portable, weight is only 13kg, easy to move on-site.

2.Operation: simple wiring, can be used with other high-voltage equipment.

3.No high voltage exposure, safe and reliable.

4.Most advanced "multiple pulse method" technology and pulse balance technology in the world. Highlight the reflected waveform of the fault point. Easier identification of test waveform. More accurate distance measurement.

5.Safety: High-voltage protection measures can realize the electrical isolation between the measuring circuit and the high-voltage impulse power supply, ensuring the safety of the rangefinder in the impulse voltage environment, without damage or crash.

Working Principle

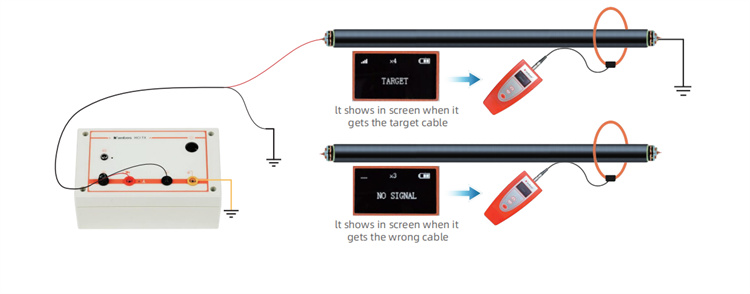

The impulse generator sends out pulses up to a peak current value of 100A into the cable to be identified.This test current generates an electromagnetic field around the cable which is picked up by a flexible identification clamp attached to the cable.The test current of these identification permits a determination of the current value and of the direction of the measuring pulse, thus leading to a safe and reliable identification of the cable.

Tell you the answer in the most intuitive way

The user only needs to observe the display of the receiver, the result display words "Target", "No Signal" and "Direction error!" are simple and clear. Usually only one conductor or cable has the correct polarity, while all other cables will have only a weak signal of the opposite polarity or no signal at all.

Twisted field sensor (optional)

Mainly used in the case of poor grounding circuit, through formation of a loop between the two cores of the cable, to accurately identify the field, increasing the universality of the use of equipment.

Compared with conventional twist field method with audio frequency, twisted field sensor combined with impulse signal has higher accuracy. This technique has a very specific feature, that is, it has a positive maximum signal value on the current emission phase and a negative signal value of the same magnitude on the current return line phase. No signal is generated on the other adjacent cables.

When testing with twisted field sensor, the screen will alternately display "DIRECTION ERROR!" and "TARGET" if the tested cable is the target cable, otherwise "NO SIGNAL" will be displayed.

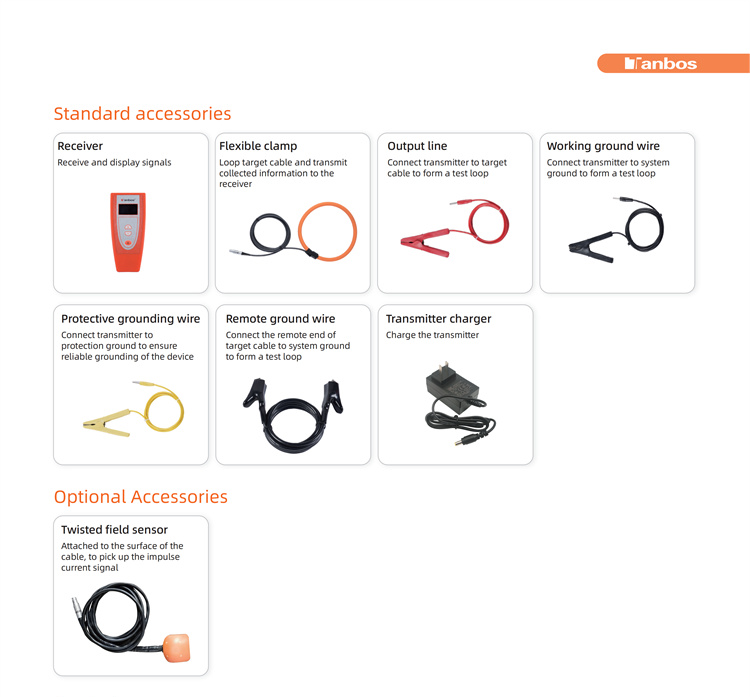

Parameters

Transmitter
Display	LED signal strength indicator (red/yellow/green)  LED battery status indicator (red/yellow/green)
One-button operation	ON/OFF
Pulse Voltage	100V, DC
Pulse current	0-100A
Pulse frequency	30 times/min
Pulse width	60ms
Power supply	AC 100-240V, 50 Hz or built-in 12V lithium battery
On-site use time	Over 6 hours, continuous use
Charge time	6 hours
Weight	1.5kg (no battery); 3kg ( with battery)
Size	325 x 248 x 125 (mm)
Receiver (LED optional)
Display		LCD screen indicates the target cable (target cable)  LCD screen indicates non-target cable (no signal)
Clamp		Flexible clamp, φ19mm
Gain		10gears (-3dB to +24 dB)
Power supply		4 x AAA
On-site use time		＞50hours
Weight		400g (with clamp and battery)
Size		165 x 80 x 30 (mm)
