TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System
TBS-1000 Lightweight and Intelligent Cable Fault Location System

TBS-1000 Lightweight and Intelligent Cable Fault Location System

1.Test modes: DC Proof, Surge Pulse (thumping) at 8/16/32 kV with fully variable output ranges at all voltage settings and facilitating full high energy capacitive discharge at all three volatge taps delivering up to 2,432 Joules. Variable Discharge Rate 6 – 10 second discharge/thump rate

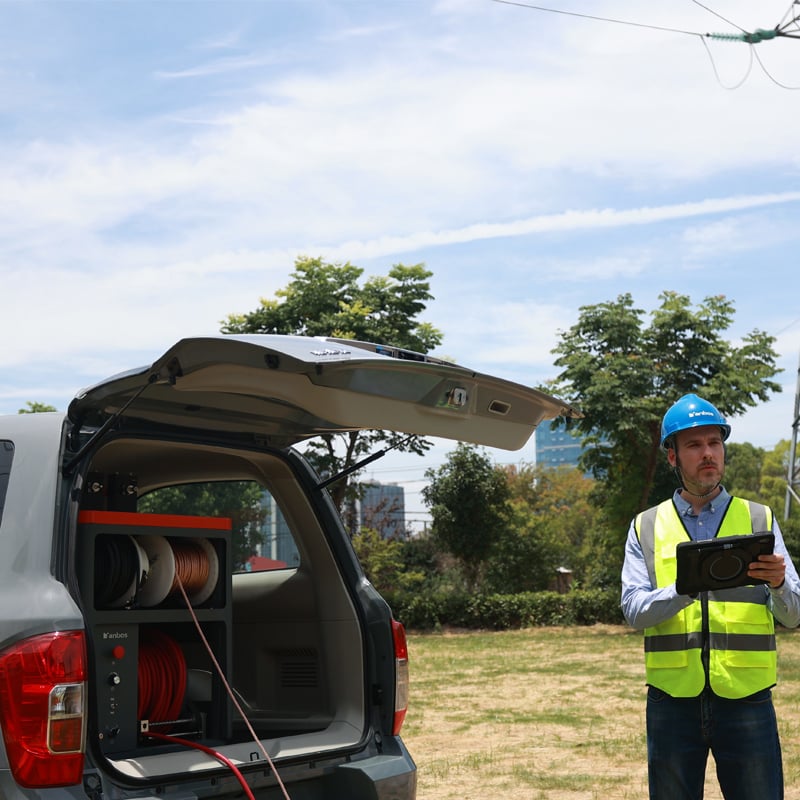

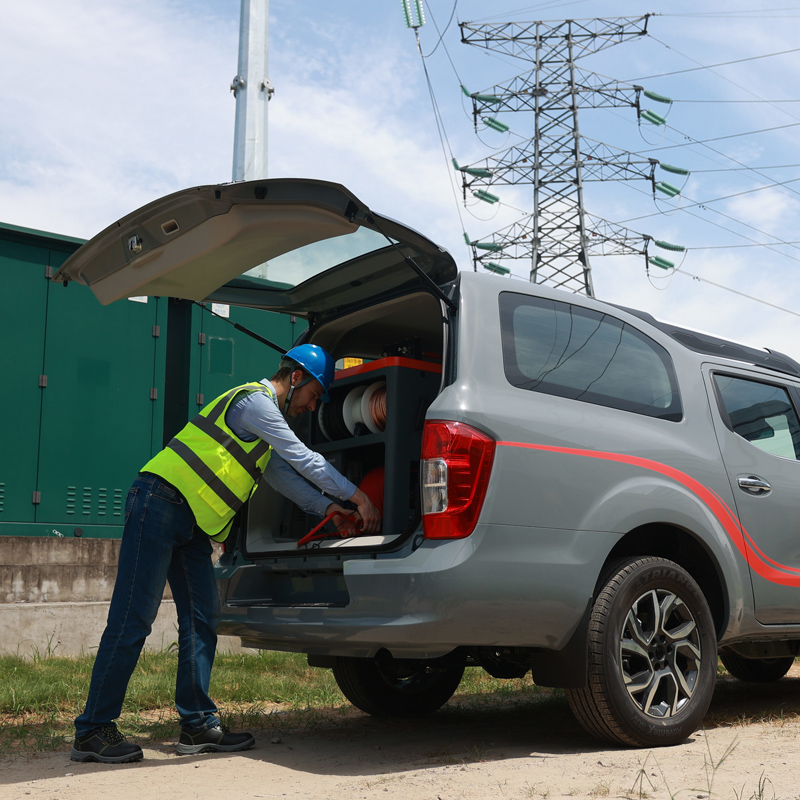

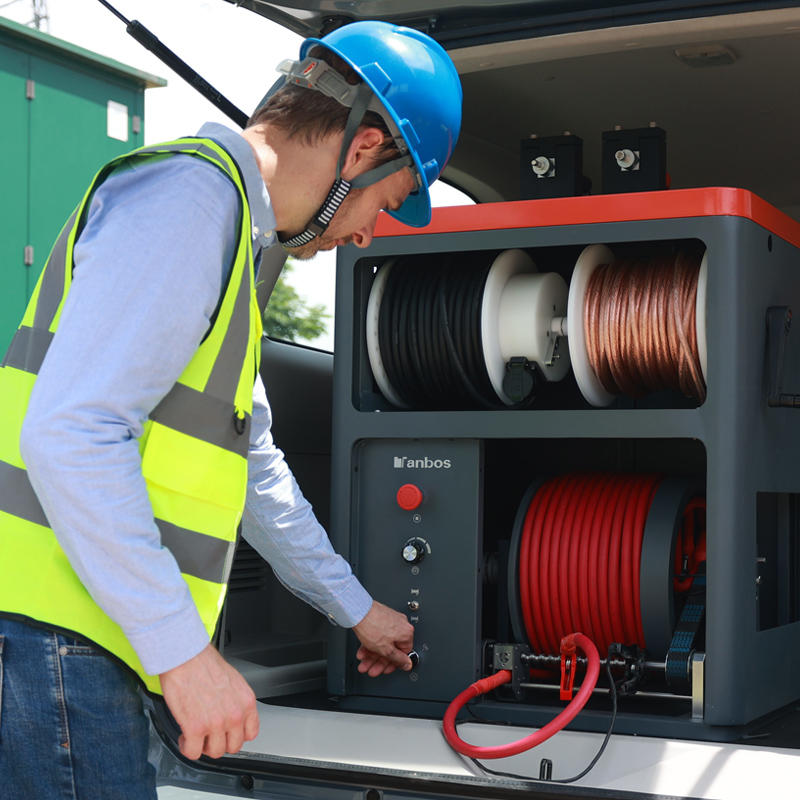

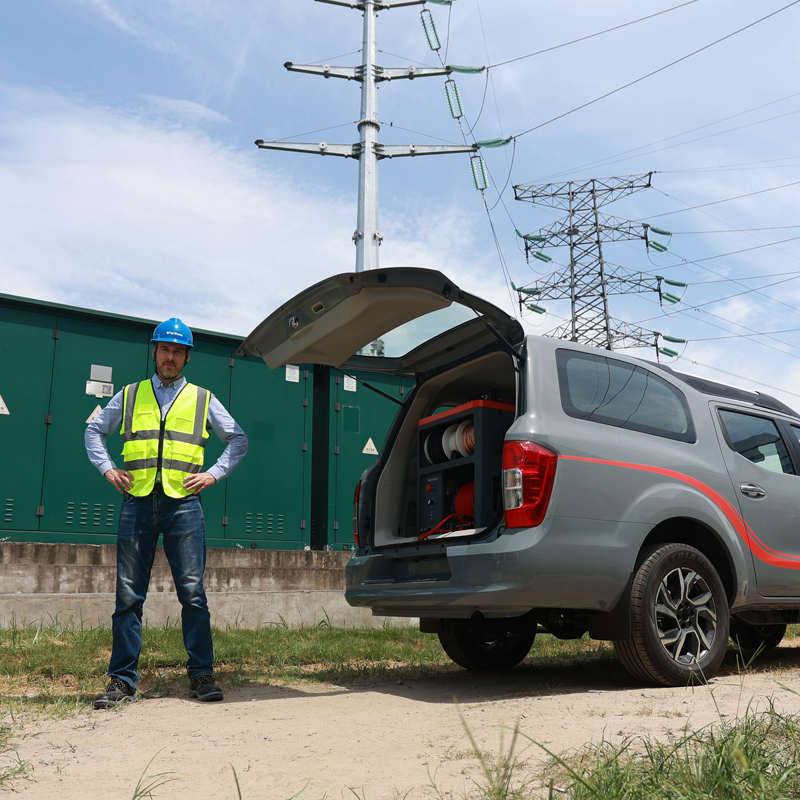

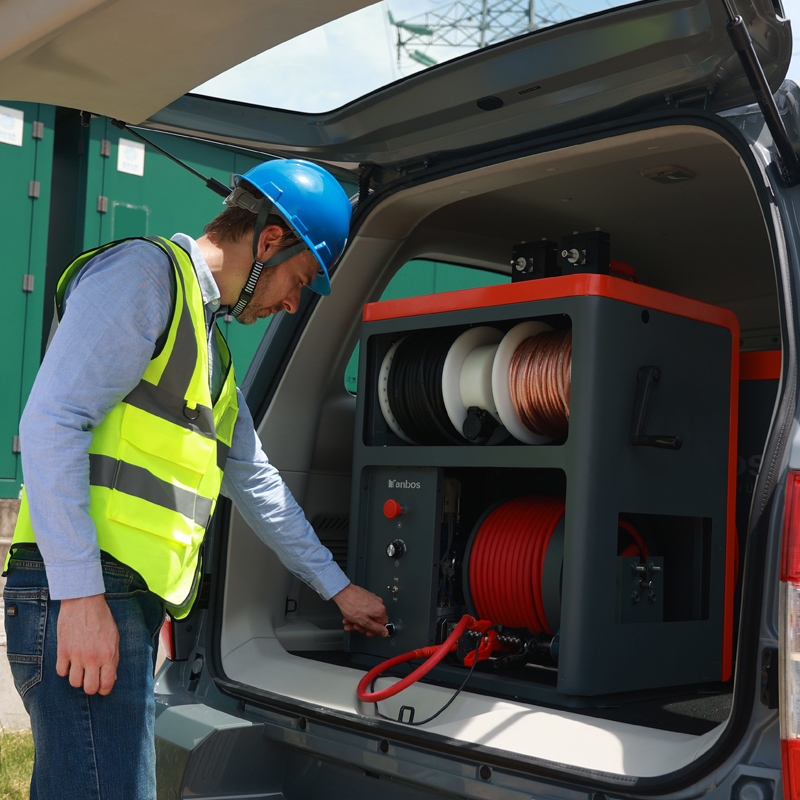

2.Easily installed in vehicles
3.Built-in TDR, ARM, ICE and DECAY

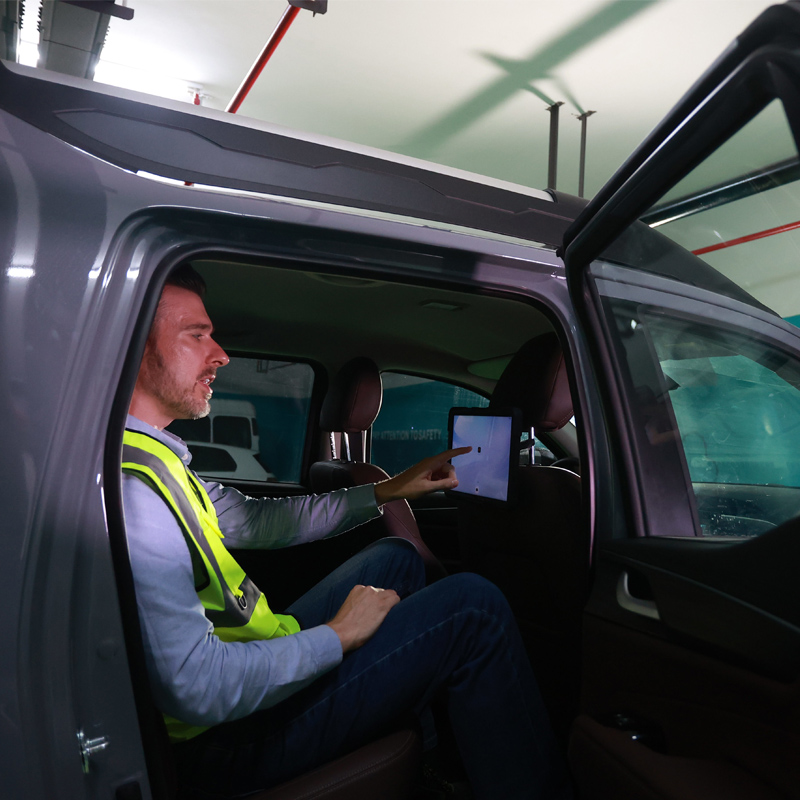

4.Controlled by a tablet
5.Fully insulated design
6.Equipped with intelligent mode and expert mode, suitable for different test situations
Get a Quote

Product Description

Product Introduction Video

Introduction

No need complicated modification, No need bigger vehicle to put in, No need to worry about the power. The TBS-1000 is your best friend for cable fault location.

Integrating multiple functions such as TDR, DC test, impulse discharge, and arcing, it's controlled by a tablet with Auto Go software. Offering intelligent/expert modes, it auto-detects cable status, analyzes waveform, pre-locate faults, and stores data.

With 8/16/32kV output, 2560J energy, 3-10s discharge rate, and a fully insulated design for easy vehicle installation, it ensures efficient and safe cable fault location.


Features

Smart In Integration
Fully insulated design, highly integrated,easy to deploy, and low requirements onvehicle models
Smart In Safety

Isolation Control

Operation far away from high voltage unit

Emergency Stop

TBS-1000 can be physically shut down remotely


High voltage Connection Detection

Automatically detect connection is good or not.

Ground Detection

Automatically detect the grounding is normal or not.


Smart In Test
AUTO GO software test system
  • Auto Go consists of TDR, ICE, ARM, and DECAY test methods
  • With Auto Go Intelligent Mode, TBS-1000 can automatically detect cable status, analyze TDR waveforms, and pre-locate faults with one click. Auto Go also has a built-in powerful database function to store test data in real time


Smart In Function

Auto Go consists ofTDR, ICE,ARM, and DECAY test methods.With Auto Go Intelligent Mode TBS-1000 can automatically detect cable status, analyze TDR waveforms, and pre-locate faults with one click.Auto Go also has a built-in powerful database function to store test data in real time.


Parameters

HIGH VOLTAGE PART TECHNICAL DATA
HV DC source 0-32 kV DC test (DC hipot)
60 mA nominal continuous current at 32 kV
Breakdown detection 0-32 kV
Standard surge levels 0… 8 / 0 … 16 / 0 … 32 kV2,432 / 2,432 / 2,432 J
Surge rate Adjustable 3-10 sec, and single shot
Built-in prelocation TDR,ARM ,ICE,DECAY
Sheath testing 0-32kV
Communication ways Wi-Fi 2.4G
Control Auto Go APP(Android version)
Grounding detect range ≥0.5Ω
Grounding detect set 2~10Ω adjustable
Grounding detect accuracy Better than 0.2Ω
Step voltage detect range 0.5~200V(peak)
Step voltage detect set 0.5~42V(30VAC)
Step voltage detect accuracy Better than 0.2V
Operating temperature -20 ~ +45℃
Storage temperature -40 ~ +60℃
Weight 180kg
Mains input supply 220V AC,50/60 Hz,2kW
Dimensions (L x W x H) 900*650*703 mm
Protection class IP43



RADAR AND CONTROL UNIT TECHNICAL DATA
TDR setup Physically and functionally integrated
Contorl Wireless tablet computer and Emergency Stop Box
Display 11.5''
Pulse generation Bipolar
Pulse amplitude 50v
Pulse width 50ns ~10μs
Measuring range 0 m-100 km, at VOP = 80 m/µs
ProRange 0 -40dB
Resolution 0.1m(at 172m/μs)
Accuracy 0.10%
Gain level 6
Data rate 200MHz
Velocity of propagation 100-300m/μs
Multishot support Yes, 5 HV fault traces,
Waveform storage capacity Unlimited

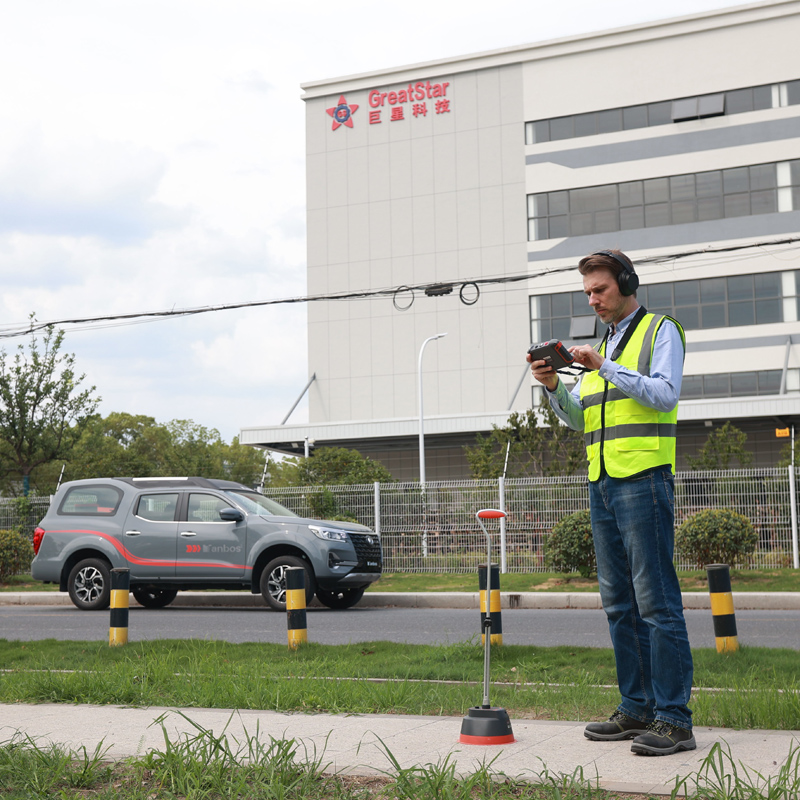

Application

Accessories

Standard accessories of TBS-1000 cable fault location system.jpg

Standard accessories of TBS-1000 cable fault location system

Optional accessories of TBS-1000 cable fault location system.jpg

Optional accessories of TBS-1000 cable fault location system
